자바스크립트, JQuery(제이쿼리): 테이블의 행, 열 번호 표시 & 행, 열번호로 테이블 td 접근하기 (예제: 직선 거리 측정)
테이블 요소에 접근할 때 엑셀처럼 행과 열의 번호(index)를 가지고 접근할 수 있다.
- 행 Element의 행의 번호 구하기:
[TR ELEMENT].rowIndex - 열 Element의 열의 번호 구하기:
[TD ELEMENT].cellIndex - 열 Element의 행의 번호 구하기:
[TD ELEMENT].parentNode.rowIndex - 행, 열 번호로 td Element 가져오기(JQuery):
$([TR Element의 선택자]).eq([행 번호]).find("td").eq([열 번호])

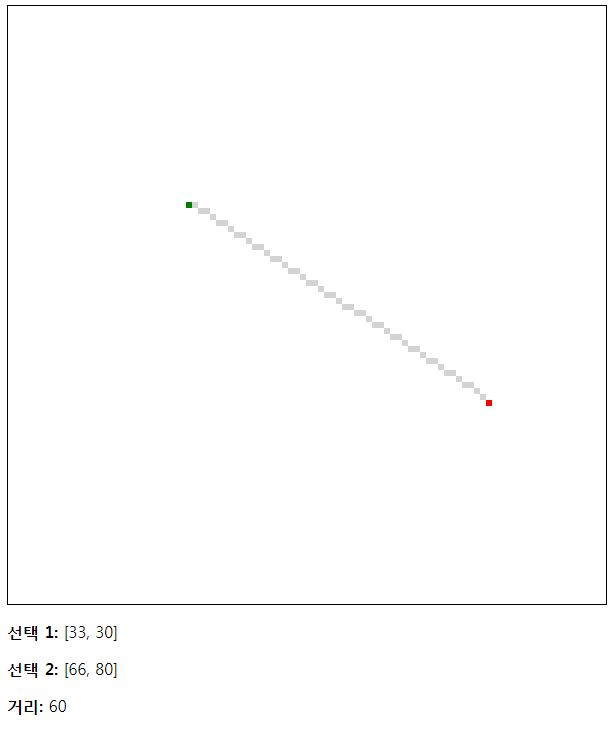

예제: 거리 구하기 (127번 줄 이후만 참고하면 됨)
https://gist.github.com/ayaysir/7cb602605f04ead8468e3d931ed19377
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
<!DOCTYPE html>
<html lang="ko">
<head>
<meta charset="UTF-8">
<title>Document</title>
<style>
#mainTable {
border: 1px solid black;
border-collapse: collapse;
width: 600px;
height: 600px
}
#mainTable td {
border: none;
}
</style>
</head>
<script src="https://code.jquery.com/jquery-3.3.1.min.js" integrity="sha256-FgpCb/KJQlLNfOu91ta32o/NMZxltwRo8QtmkMRdAu8=" crossorigin="anonymous"></script>
<body>
<div id=wrapper></div>
<script>
var $tableEl = $('<table/>', {
id: "mainTable"
})
for (var i = 1; i <= 100; i++) {
var $trEl = $('<tr/>')
for (var j = 1; j <= 100; j++) {
$trEl.append($('<td/>'))
}
$tableEl.append($trEl)
}
$('#wrapper').append($tableEl)
</script>
<p id="lblSelect1"><strong>선택 1:</strong> <span></span></p>
<p id="lblSelect2"><strong>선택 2:</strong> <span></span></p>
<p id="lblDistance"><strong>거리:</strong> <span></span></p>
<script>
window.onload = function() {
function getDistance(coorObj1, coorObj2) {
var x = coorObj2.row - coorObj1.row
var y = coorObj2.col - coorObj1.col
return Math.sqrt(Math.pow(x, 2) + Math.pow(y, 2))
}
function drawLine(coorObj1, coorObj2) {
var color = "lightgray"
if(coorObj1.col > coorObj2.col){
var temp = coorObj2
coorObj2 = coorObj1
coorObj1 = temp
} else if (coorObj1.row > coorObj2.row && coorObj1.col == coorObj2.col){
for(var i = coorObj2.row + 1; i < coorObj1.row; i++){
$("#mainTable tr").eq(i).find("td").eq(coorObj1.col).css("background-color", color)
}
}
// y = ax + 0
var absX = Math.abs(coorObj2.row - coorObj1.row)
var absY = Math.abs(coorObj2.col - coorObj1.col)
var startpoint = 0
var endpoint = absX > absY ? absX : absY
// alert(absX + ":" + absY)
var a, aCase;
if(absX > absY){
a = (coorObj2.col - coorObj1.col) / (coorObj2.row - coorObj1.row)
aCase = "X"
if(coorObj2.row > coorObj1.row){
startpoint = 1;
endpoint = endpoint - 1
// alert('dnl')
} else {
startpoint = 0;
endpoint = endpoint - 1
// alert('dkfo')
}
} else {
a = (coorObj2.row - coorObj1.row) / (coorObj2.col - coorObj1.col)
aCase = "Y"
startpoint = 0;
endpoint = endpoint - 1
}
for (var i = startpoint; i <= endpoint; i++) {
var targetTr;
if (coorObj2.col > coorObj1.col) {
if (coorObj2.row > coorObj1.row) {
targetTr = (aCase != "X" ? coorObj1.row : coorObj2.col) + Math.abs(Math.round(y, 0))
} else if (coorObj2.row <= coorObj1.row){
targetTr = (aCase != "X" ? coorObj1.row : coorObj2.col) - Math.abs(Math.round(y, 0))
}
}
var y = a * i
// console.log("bet", Math.round(y, 0))
if(aCase == "X"){
if(coorObj1.row > coorObj2.row){
$("#mainTable tr").eq(coorObj2.row + i).find("td").eq(targetTr).css("background-color", color)
} else {
$("#mainTable tr").eq(coorObj1.row + i).find("td").eq(coorObj1.col + Math.abs(Math.round(y, 0))).css("background-color", color)
}
} else {
$("#mainTable tr").eq(targetTr).find("td").eq(coorObj1.col + i).css("background-color", color)
}
}
}
var tdEl = document.getElementsByTagName("td")
var currentCount = 1
var coor1, coor2;
$('#mainTable td').on("click", function(ev) {
var rowIndex = ev.target.parentNode.rowIndex
var colIndex = ev.target.cellIndex
console.log(rowIndex, colIndex)
$('#lblSelect' + currentCount + " span").text("[" + rowIndex + ", " + colIndex + "]")
if (currentCount == 1) {
$("#mainTable td").css("background-color", "")
$("#lblSelect2 span").text("")
$("#lblDistance span").text("")
ev.target.style.backgroundColor = "green"
coor1 = {
row: rowIndex,
col: colIndex
}
currentCount++
} else if (currentCount == 2) {
ev.target.style.backgroundColor = "red"
coor2 = {
row: rowIndex,
col: colIndex
}
$("#lblDistance span").text(Math.round(getDistance(coor1, coor2), 2))
currentCount = 1
drawLine(coor1, coor2)
}
})
}
</script>
</body>
</html>
This post is licensed under
CC BY 4.0
by the author.
